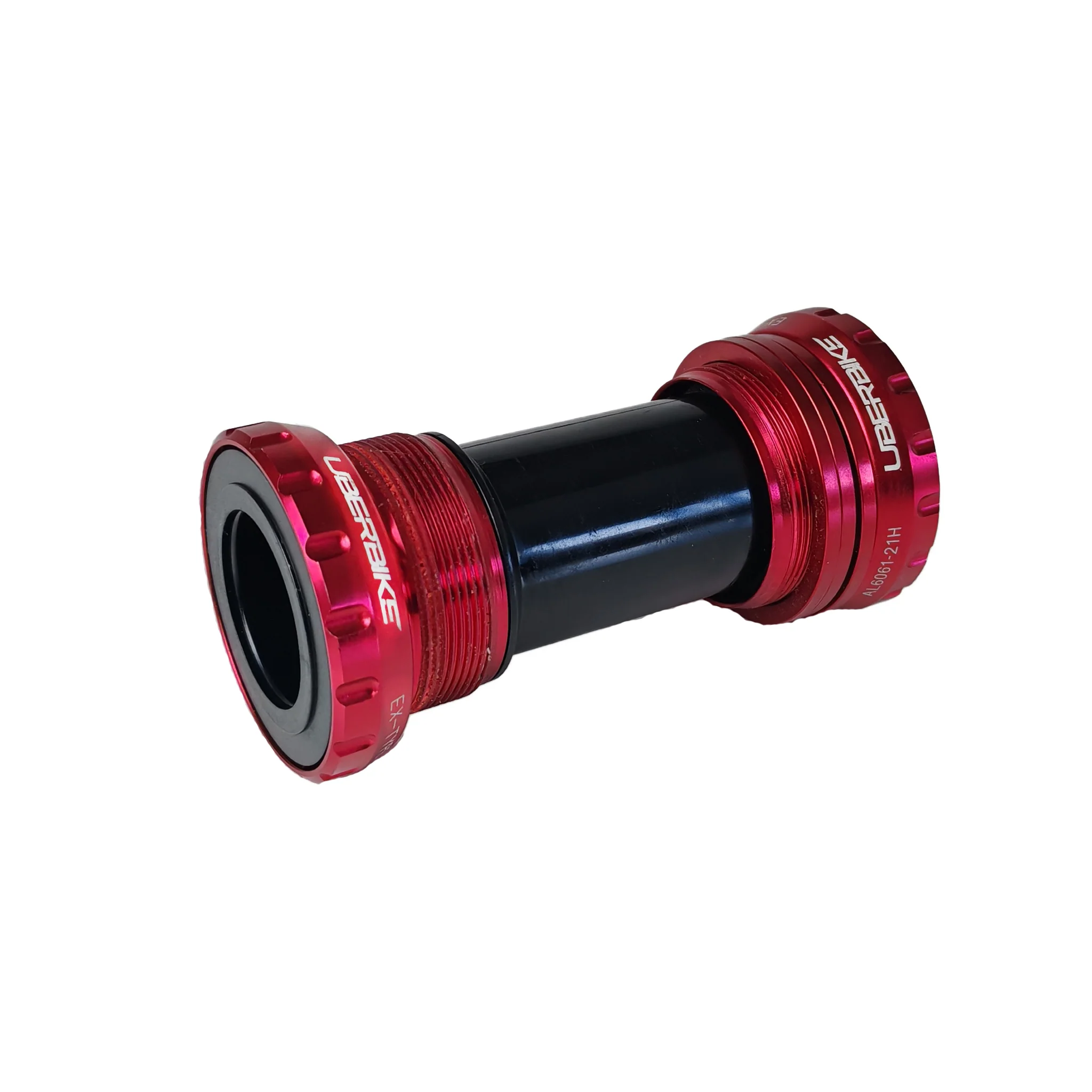

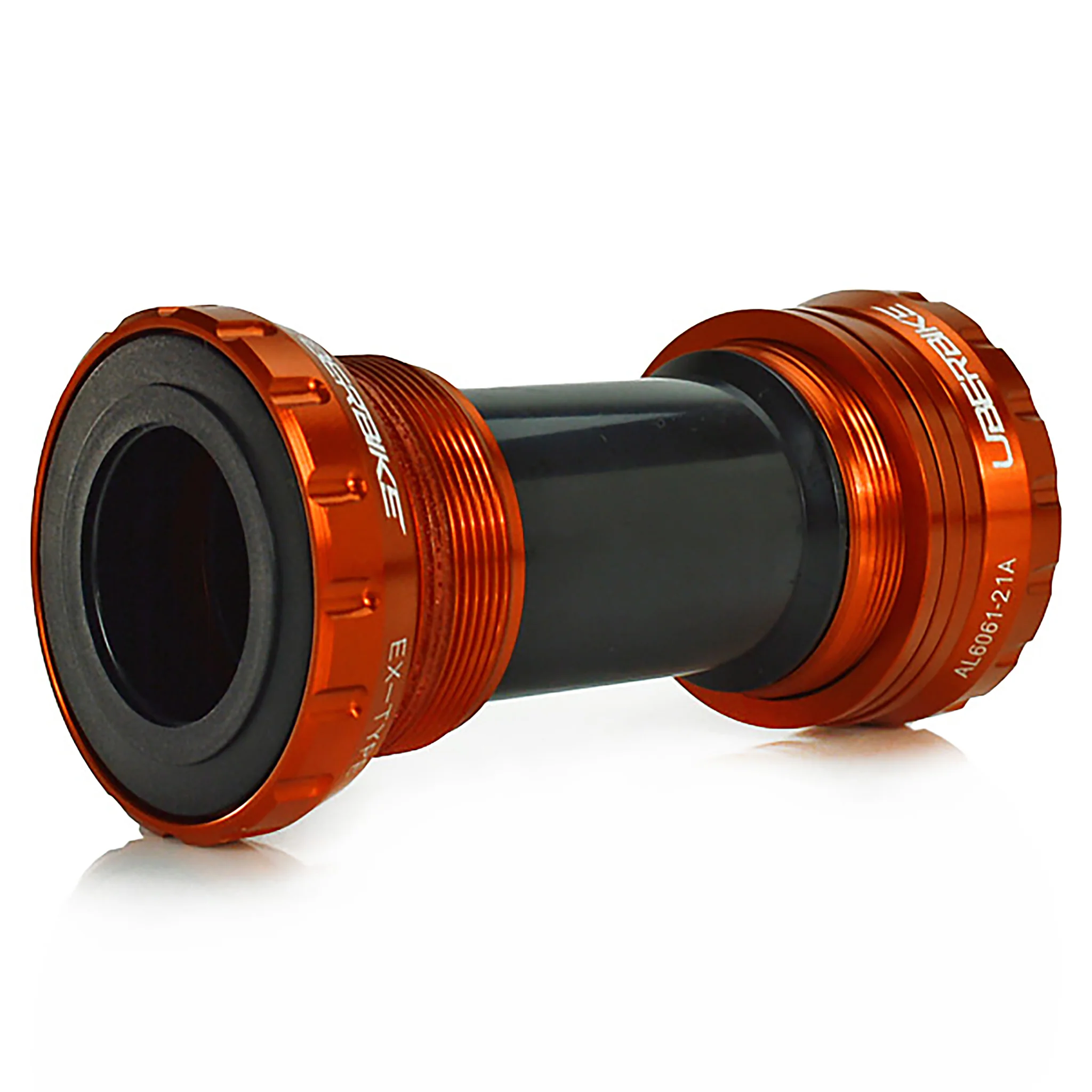

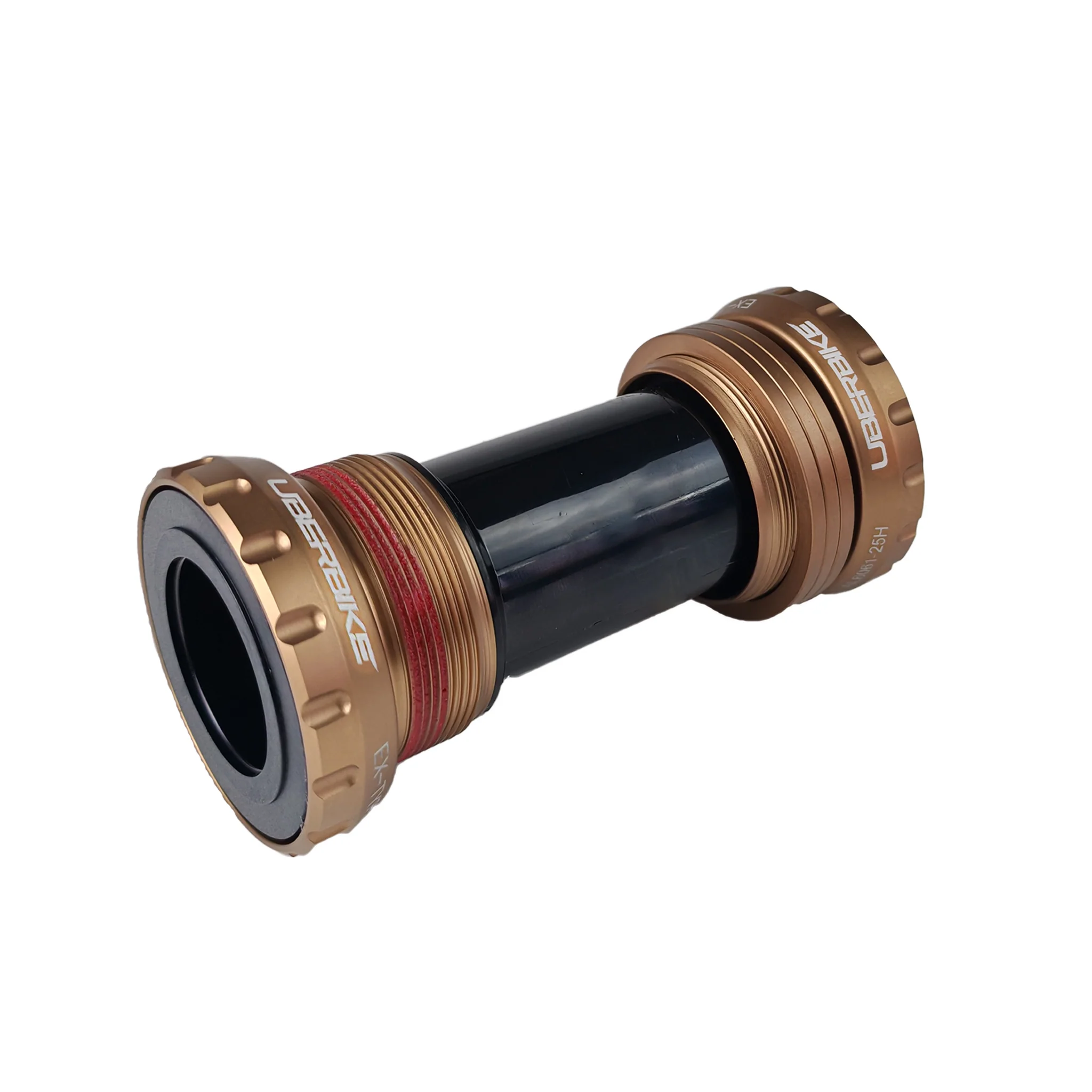

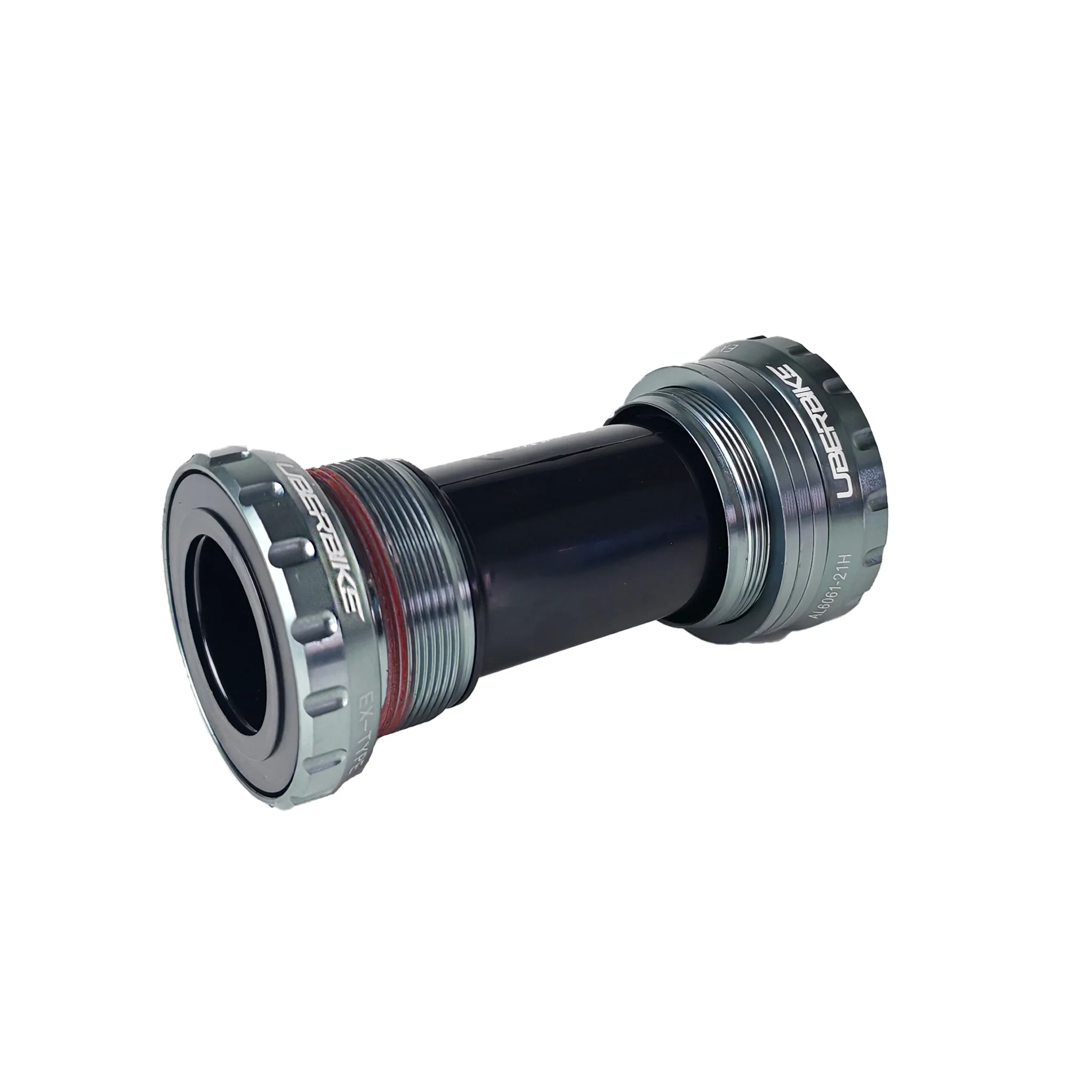

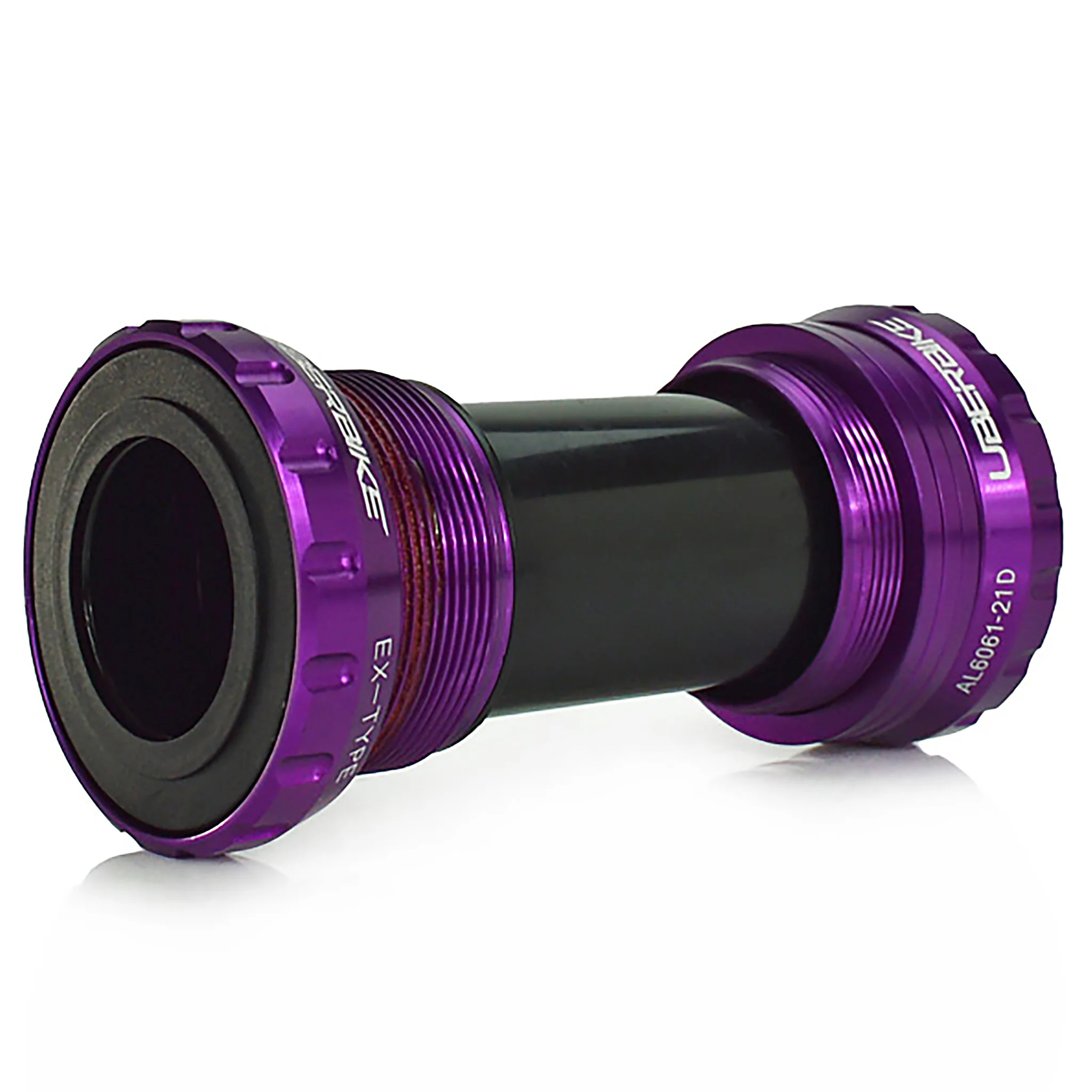

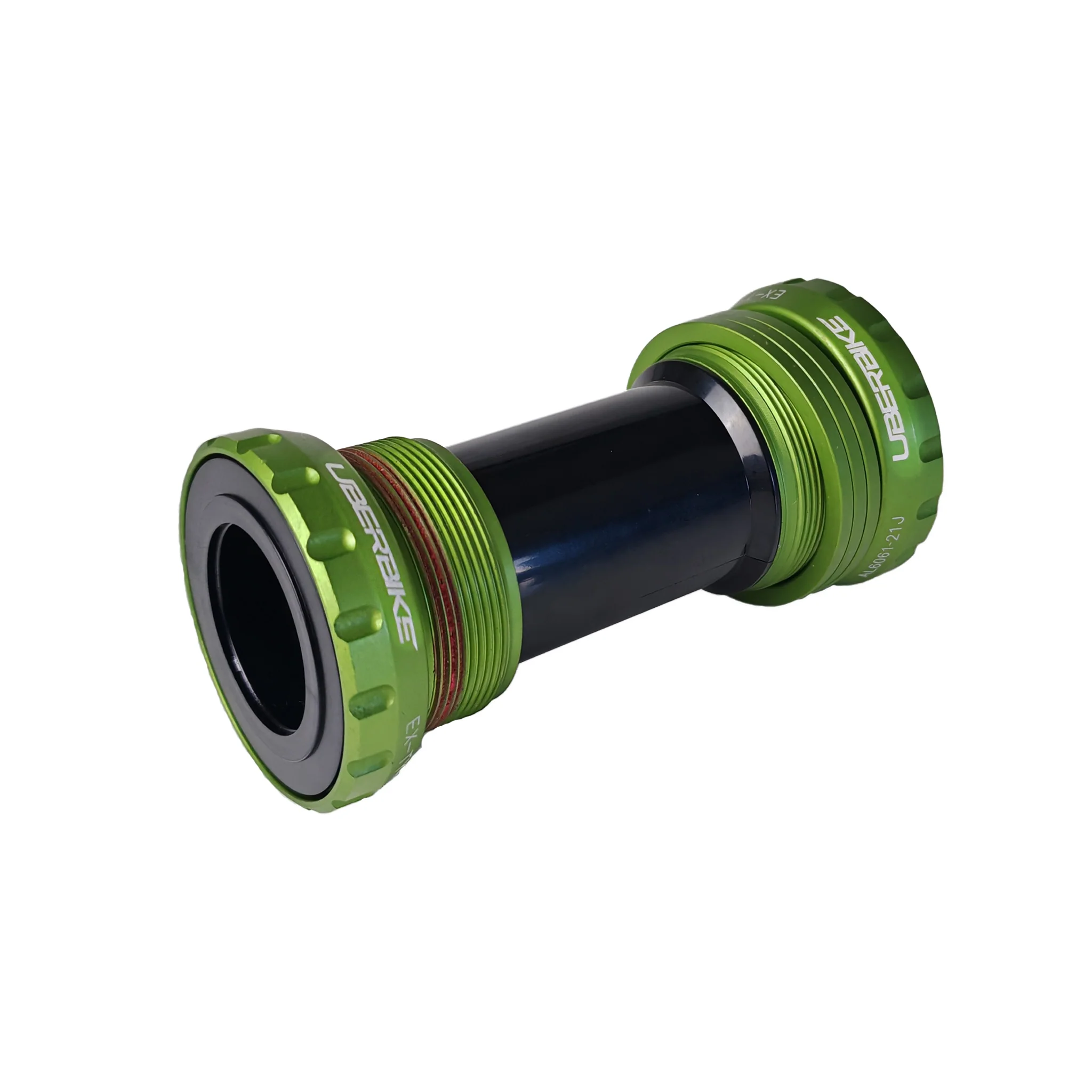

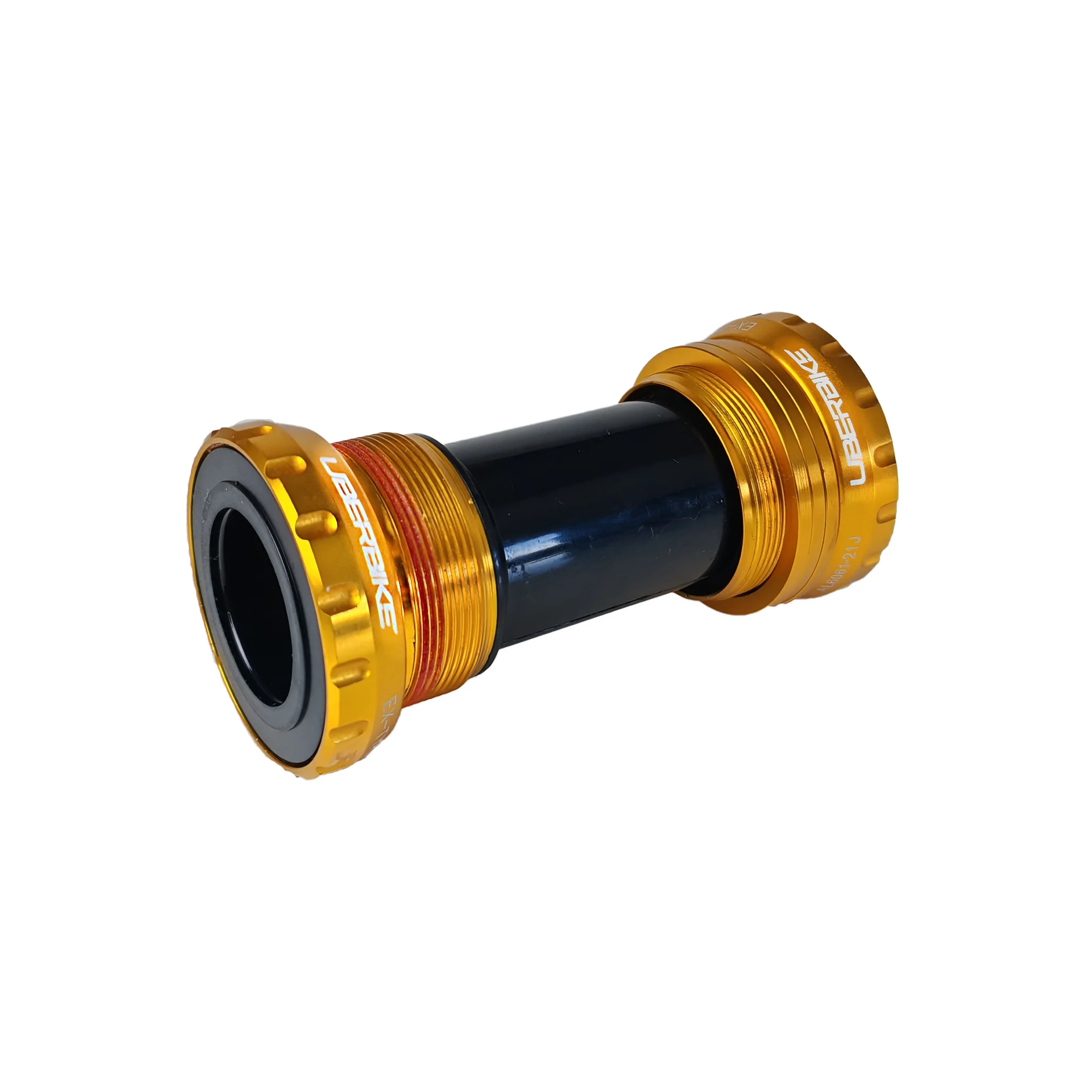

Bottom Bracket 68/73mm - Shimano Hollowtech II MTB / Road Compatible
The Uberbike Shimano Hollowtech II compatible bottom brackets have been specifically designed for use with either 68mm or 73mm BSA threaded MTB or Road bottom bracket frame types using a 24mm spindle diameter chainsets.
This bottom bracket is a direct replacement for popular Shimano models including: Deore SM-BB52, BB-MT501, M810 and BB-RS501.
The bottom bracket cups are CNC machined from lightweight but strong 6061 alloy and are available in a range of 8 anodised finish options. For bearings, we have selected to use carbon steel over standard chrome steel bearings for their superior hardness and increased load capacity, offering a higher life cycle which makes them an ideal choice for mountain and road bike bottom brackets, with the 2 rubber seals acting as a barrier to help lock out dirt and ingress, whilst keeping the lubrication trapped inside.
Chainsets that use 24mm diameter bottom brackets include Shimano Hollowtech II, as well as some models of Raceface, FSA, and Rotor.
Features
- Compatibility - Frame type 68/73mm BSA threaded / 24mm spindle diameter chainsets.
- Lightweight CNC machined 6061 alloy cups with replaceable bearings, anodised finish with laser engraved logo.
- Composite centre tube double O-ring sealed, external custom-lipped outer seals.
- Carbon Steel sealed bearings offer increased durability and a higher life cycle than standard bearing types.
- Weight - 96g.
- Requires 16-point 44mm OD installation tool.
Original: $60.58
-65%$60.58
$21.20More Images
Bottom Bracket 68/73mm - Shimano Hollowtech II MTB / Road Compatible
The Uberbike Shimano Hollowtech II compatible bottom brackets have been specifically designed for use with either 68mm or 73mm BSA threaded MTB or Road bottom bracket frame types using a 24mm spindle diameter chainsets.
This bottom bracket is a direct replacement for popular Shimano models including: Deore SM-BB52, BB-MT501, M810 and BB-RS501.
The bottom bracket cups are CNC machined from lightweight but strong 6061 alloy and are available in a range of 8 anodised finish options. For bearings, we have selected to use carbon steel over standard chrome steel bearings for their superior hardness and increased load capacity, offering a higher life cycle which makes them an ideal choice for mountain and road bike bottom brackets, with the 2 rubber seals acting as a barrier to help lock out dirt and ingress, whilst keeping the lubrication trapped inside.
Chainsets that use 24mm diameter bottom brackets include Shimano Hollowtech II, as well as some models of Raceface, FSA, and Rotor.
Features
- Compatibility - Frame type 68/73mm BSA threaded / 24mm spindle diameter chainsets.
- Lightweight CNC machined 6061 alloy cups with replaceable bearings, anodised finish with laser engraved logo.
- Composite centre tube double O-ring sealed, external custom-lipped outer seals.
- Carbon Steel sealed bearings offer increased durability and a higher life cycle than standard bearing types.
- Weight - 96g.
- Requires 16-point 44mm OD installation tool.
